一、概述Introduction

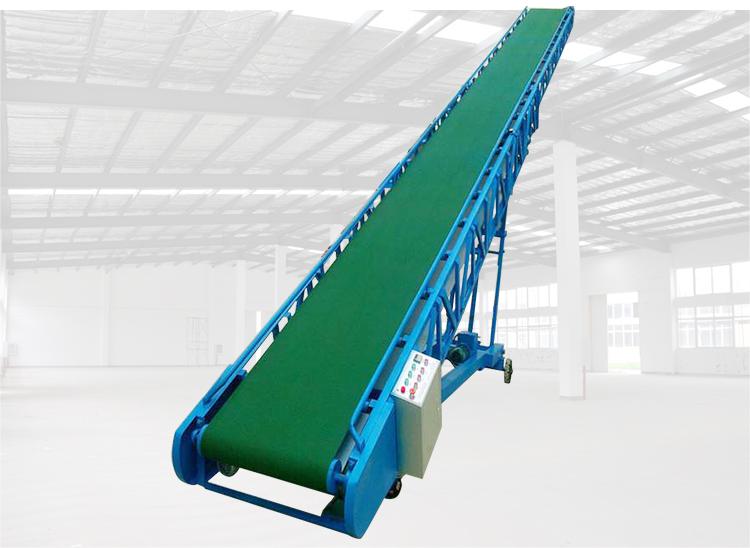

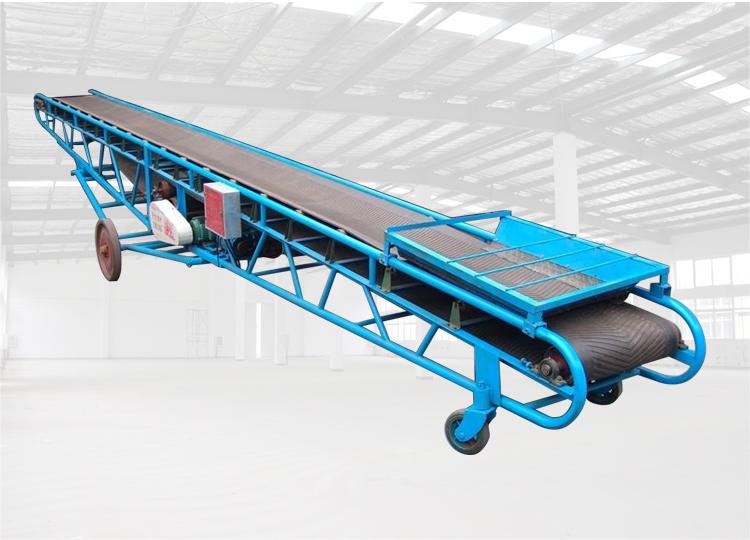

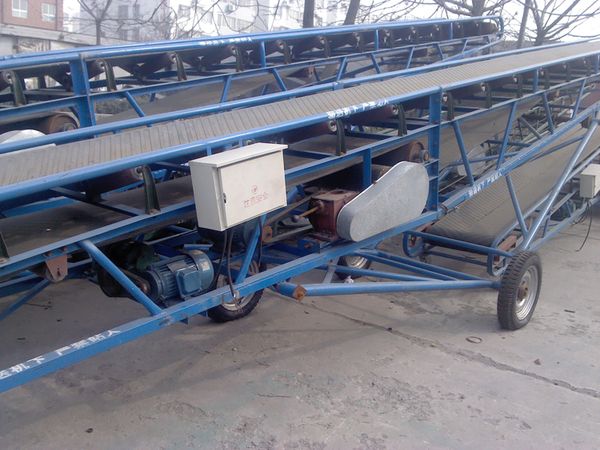

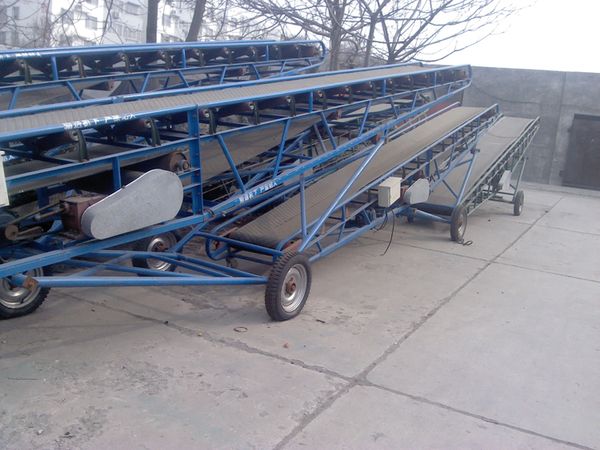

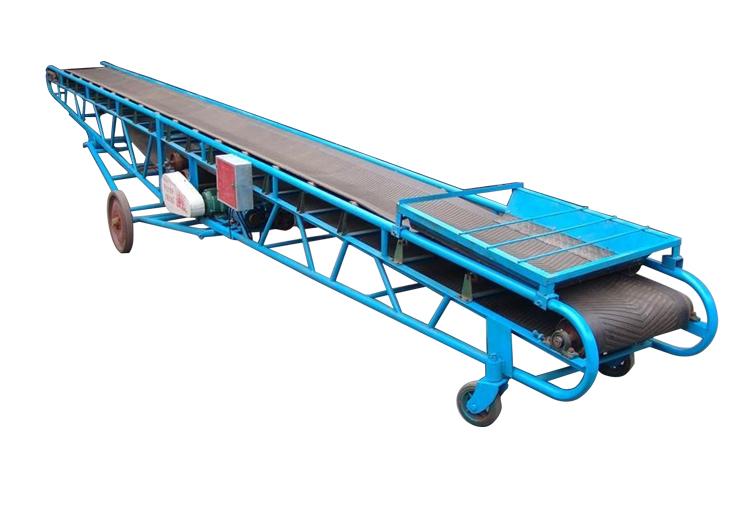

伸缩皮带机是在通常的带式输送机上增长了伸缩机构，使得皮带机能够在长度方向上自由伸缩 。使用者能够依照自己的要求调节，随季节造输送机的长度 。伸缩皮带机可双向运行输送物料 。伸缩皮带机可与其它输送设备和物料分拣系统共同使用,实现物料出入库或车辆装卸的自动化出产，在各行业中均得到宽泛的利用 。
The telescopic belt conveyor adds a telescopic mechanism to the ordinary belt conveyor, so that the belt conveyor can freely expand and contract in the length direction. The user can adjust according to his own requirements and control the length of the conveyor at any time. The telescopic belt conveyor can transport materials in both directions. The telescopic belt conveyor can be used together with other conveying equipment and material sorting system to realize the automatic production of materials in and out of the warehouse or vehicle loading and unloading, and is widely used in various industries.
二、利用领域Applied field
伸缩皮带机在各行业中均得到宽泛的利用 �？捎肫渌渌蜕璞负臀锪戏旨鸫湎低彻餐褂�,实现物料出入库或车辆装卸的自动化出产 。
Telescopic belt conveyors are widely used in various industries. It can be used together with other conveying equipment and material sorting transmission system to realize automatic production of material in and out of the warehouse or vehicle loading and unloading.
三、技术参数Technical parameters
型 号 Model | SSC2S-6/4 | SSC2S-6/8 | SSC2S-6/12 | SSC2S-6/14 |
缩回长度Retracted Length(mm) | 6000 | |||
耽搁长度Extended length(mm) | 4000 | 12000 | 14000 | 8000 |
总长度Total length(mm) | 10000 | 14000 | 18000 | 20000 |
高度Height(mm) | 750 | 1200 | 1000 | 800 |
传送带宽度Conveyor Width(mm) | 1380 | 1400 | 1470 | 1530 |
皮带宽度Belt Width(mm) | 600/800 | |||
皮带方向Belt direction | 可逆Reversible | |||
皮带速度Belt speed(m/min) | 0~36(可调整的adjustable) | |||
输送能力Capacity(kg/m) | 60 | |||
倾斜Tilting(°） | 0~50° 可通过液压调节adjustable by hydraulic | |||
驱动电机Driven motor(KW) | 1.5KW | 2.2KW | 3.0KW | 4.0KW |
沉量Weight(t) | 2t | 3t | 4t | 5t |
