一、概述Introduction

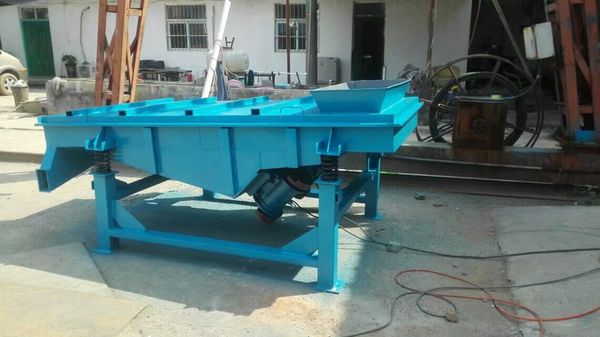

轻型直线振动筛是利用两台振动电机为激震源，反向动弹时产生的激振力，通过传振体传递到轻型直线振动筛整个筛面上，从而使筛面上的物料向出料口方向跳跃活动。幼于筛孔的物料通过筛网落到基层，经陆续跳跃后从出料口流出，卡在筛网上的物料由橡胶球弹出，由于筛分过程合理，可同时获得几种分歧规格的物料� ？膳涞ド富蚨嗌�，实现分级，去除杂质，除尘，检测，洗选，脱水等。
The light linear vibrating screen uses two vibrating motors as the shock source, and the exciting force generated in the reverse rotation is transmitted to the entire screen surface of the light linear vibrating screen through the vibration transmitting body, so that the material on the screen surface is directed to the discharging port, direction jump movement. The material smaller than the sieve hole falls to the lower layer through the screen, and flows out from the discharge port after continuous jumping. The material stuck on the screen is ejected by the rubber ball. Since the screening process is reasonable, several materials of different specifications can be obtained at the same time. Can be equipped with single or multiple screens to achieve classification, impurity removal, dust removal, detection, washing, dehydration, etc.
二、利用领域Applied field
DZSF系列轻型直线振动筛重要合用于，块状、颗粒状、粉状物料的筛分。如磨料、建材、医药、化工、冶金、树脂粉、陶瓷原料等，可凭据客户必要，现场尺寸要求，进行设计造作。
DZSF series light linear vibrating screen is mainly suitable for screening of block, granular and powder materials. Such as abrasives, building materials, medicine, chemicals, metallurgy, resin powder, ceramic raw materials, etc., according to customer needs, on-site size requirements, design and production.
三、技术参数Technical parameters
轻型直线振动筛 | 筛面尺寸（mm） | 筛面层数 | 网孔尺寸（目/in） | 处置量（t/h） | 振次Min | 双振幅（mm） | 电机功率（kw） | 振动方向角（°） | 表型尺寸 |
DZSF520 | 500×2000 | 1 | 2~200 | 0.05~5 | 960 | 3~6 | 2×0.37 | 45~60 | 2075×806×990 |
2DZSF520 | 2 | 0.05~5 | 960 | 3~6 | 2×0.37 | 458~60 | 2135×806×1050 | ||
3DZSF520 | 3 | 0.03~5 | 960 | 3~6 | 2×0.37 | 45 | 2195×806×1110 | ||
DZSF525 | 500×2500 | 1 | 0.06~8 | 960 | 3~6 | 2×0.37 | 45~60 | 2575×806×990 | |
2DZSF525 | 2 | 0.06~8 | 960 | 3~6 | 2×0.37 | 45 | 2635×806×1050 | ||
3DZSF525 | 3 | 0.06~8 | 960 | 3~6 | 2×0.75 | 45~60 | 2695×806×1110 | ||
4DZSF525 | 4 | 0.1~15 | 960 | 3~6 | 2×0.37 | 45 | 2755×806×1170 | ||
5DZSF525 | 5 | 0.08~15 | 960 | 3~6 | 2×0.37 | 45 | 2815×806×1230 | ||
6DZSF525 | 6 | 0.07~15 | 960 | 3~6 | 2×0.75 | 45~60 | 2875×806×1290 | ||
DZSF1020 | 1000×2000 | 1 | 0.12~20 | 960 | 3~6 | 2×0.75 | 45~60 | 2075×1278×1120 | |
2DZSF1020 | 2 | 0.11~20 | 960 | 3~6 | 2×0.75 | 45~60 | 2135×1278×1180 | ||
3DZSF1020 | 3 | 0.1~2 | 960 | 3~6 | 2×0.75 | 45~60 | 2195×1278×1240 | ||
4DZSF1020 | 4 | 0.07~15 | 960 | 3~6 | 2×0.75 | 45~60 | 2255×1278×1300 | ||
5DZSF1020 | 5 | 0.07~15 | 960 | 3~6 | 2×1.5 | 45~60 | 2315×1278×1360 | ||
6DZSF1020 | 6 | 0.07~15 | 960 | 3~6 | 2×1.5 | 45~60 | 2375×1278×1420 | ||
DZSF1025 | 1000×2500 | 1 | 0.1~15 | 960 | 3~6 | 2×0.37 | 45 | 2575×1278×1120 | |
2DZSF1025 | 2 | 0.08~15 | 960 | 3~6 | 2×0.37 | 45 | 2635×1278×1180 | ||
3DZSF1025 | 3 | 0.07~15 | 960 | 3~6 | 2×0.75 | 45~60 | 2695×1278×1240 | ||
DZSF830 | 800×3000 | 1 | 0.1~20 | 960 | 3~6 | 2×0.75 | 45~60 | 3080×1098×1120 | |
2DZSF830 | 2 | 0.1~20 | 960 | 3~6 | 2×0.75 | 45~60 | 3140×1098×1180 | ||
3DZSF830 | 3 | 0.1~20 | 960 | 3~6 | 2×1.5 | 45~60 | 3200×1098×1240 | ||
DZSF1030 | 1000×3000 | 1 | 0.1~20 | 960 | 3~6 | 2×0.75 | 45~60 | 3080×1298×1120 | |
2DZSF1030 | 2 | 0.1~20 | 960 | 3~6 | 2×1.5 | 45~60 | 3080×1298×1120 | ||
3DZSF1030 | 3 | 0.1~20 | 960 | 3~6 | 2×1.5 | 45~60 | 3080×1298×1120 | ||
DZSF1224 | 1200×2400 | 1 | 0.1~23 | 960 | 3~6 | 2×0.75 | 45~60 | 2480×1520×1100 | |
2DZSF1224 | 2 | 0.1~23 | 960 | 3~6 | 2×0.75 | 45~60 | 2540×1520×1160 | ||
3DZSF1224 | 3 | 0.1~23 | 960 | 3~6 | 2×1.5 | 45~60 | 2600×1520×1220 |
